High-efficiency, 600 mA step-down DC-to-DC converter with a fixed 3.3V output. Features a 3 MHz switching frequency and 2% accuracy, operating from a 2.3V to 5.5V input range. Delivers up to 600mA output current with 95% efficiency. Compact TSOT package for surface mounting, measuring 2.9mm x 1.6mm x 0.9mm. Low quiescent current of 18µA and operating supply current of 30µA. RoHS compliant and operates across a -40°C to 125°C temperature range.
PackageTSOT
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP2108AUJZ-3.3-R7 technical specifications.
General
Accuracy
2%
Package/Case
TSOT
Efficiency
95%
Height
0.9mm
Lead Free
Contains Lead
Length
2.9mm
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
600mA
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Operating Supply Current
30uA
Output Configuration
Positive
Output Current
600mA
Output Type
Fixed
Output Voltage
3.3V
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
18uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ADP2108
Synchronous Rectifier
Yes
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2108AUJZ-3.3-R7 Datasheet
Download the complete datasheet for Analog Devices ADP2108AUJZ-3.3-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

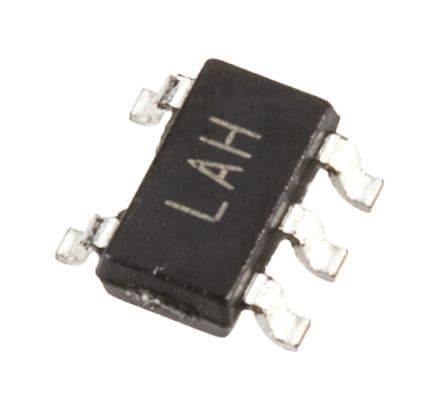

Product Images
