High-efficiency, 1.8V fixed output step-down converter with 600mA maximum output current. Features a 3 MHz switching frequency and synchronous rectification for up to 95% efficiency. Operates from a 2.3V to 5.5V input voltage range with a low 30µA operating supply current. Surface mount package with copper, tin, and silver contact plating, suitable for operation between -40°C and 85°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2109ACBZ-1.8-R7 technical specifications.
General
Contact Plating
Copper, Tin, Silver
Efficiency
95%
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
600mA
Max Output Voltage
1.8V
Min Output Voltage
1.8V
Mount
Surface Mount
Nominal Supply Current
30uA
Number of Outputs
1
Operating Supply Current
30uA
Output Configuration
Positive
Output Current
600mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Weight
0.001482oz
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2109ACBZ-1.8-R7 Datasheet
Download the complete datasheet for Analog Devices ADP2109ACBZ-1.8-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

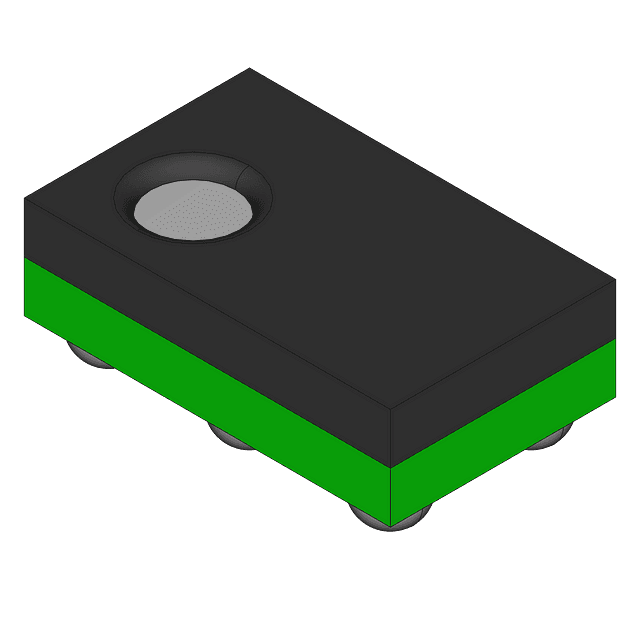

Product Images
