Analog Devices
ADP2126ACDZ-1.20R7
Ultralow Profile, 500 mA, 6 MHz, Synchronous, Step-Down, DC-to-DC, BUMP_CHIP
PackageDIE
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2126ACDZ-1.20R7 technical specifications.
General
Package/Case
DIE
Contact Plating
Tin, Silver, Matte
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
1.2V
Mount
Surface Mount
Nominal Output Voltage
1.2V
Nominal Supply Current
500uA
Number of Outputs
1
Operating Supply Current
500uA
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
1.2V
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2126ACDZ-1.20R7 Datasheet
Download the complete datasheet for Analog Devices ADP2126ACDZ-1.20R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

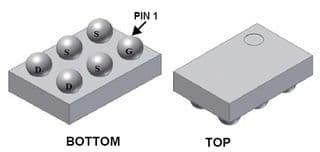

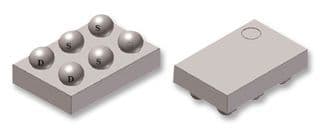

Product Images
