Analog Devices
ADP2127ACNZ1.260R7
Ultralow Profile, 500 mA, 6 MHz, Synchronous, Step-Down, DC-to-DC, EWLP
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2127ACNZ1.260R7 technical specifications.
General
Package/Case
SMD/SMT
Contact Plating
Copper
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
1.26V
Mount
Surface Mount
Nominal Output Voltage
1.26V
Nominal Supply Current
500uA
Number of Outputs
1
Operating Supply Current
500uA
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
1.26V
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2127ACNZ1.260R7 Datasheet
Download the complete datasheet for Analog Devices ADP2127ACNZ1.260R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

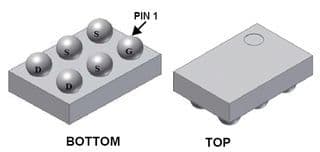

Product Images
