MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2147ACBZ-150-R7 technical specifications.
General
Contact Plating
Copper, Tin, Silver
Efficiency
95%
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
3.3V
Min Output Voltage
1.2V
Mount
Surface Mount
Nominal Supply Current
23uA
Number of Outputs
1
Operating Supply Current
23uA
Output Configuration
Positive
Output Current
800mA
Output Type
Fixed, Adjustable
Output Voltage
3.3V
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Weight
0.002328oz
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2147ACBZ-150-R7 Datasheet
Download the complete datasheet for Analog Devices ADP2147ACBZ-150-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

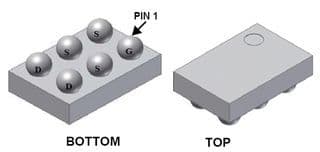

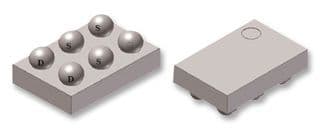

Product Images
