MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2164ACPZ-1.0-R7 technical specifications.
General
Contact Plating
Tin, Matte
Lead Free
Contains Lead
Max Input Voltage
6.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Output Voltage
6.5V
Min Output Voltage
600mV
Mount
Surface Mount
Nominal Supply Current
1.1mA
Number of Outputs
1
Operating Supply Current
1.1mA
Output Current
4A
Output Type
Fixed
Output Voltage
1V
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2164ACPZ-1.0-R7 Datasheet
Download the complete datasheet for Analog Devices ADP2164ACPZ-1.0-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

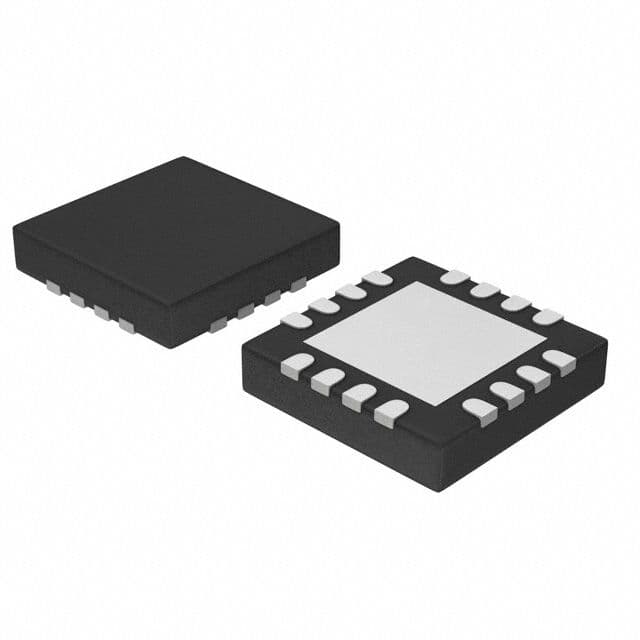

Product Images
