Synchronous step-down DC-to-DC regulator with a 4A maximum output current. Features a 4.5V to 20V input voltage range and adjustable output voltage from 600mV to 18V. Operates across a -40°C to 125°C temperature range. This surface mount component utilizes tin, matte contact plating and is supplied on tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2384ACPZN-R7 technical specifications.
General
Contact Plating
Tin, Matte
Height
0.8mm
Lead Free
Contains Lead
Length
4.1mm
Max Input Voltage
20V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Output Voltage
18V
Min Output Voltage
600mV
Mount
Surface Mount
Nominal Supply Current
3.6mA
Number of Outputs
1
Output Configuration
Positive
Output Current
4A
Output Type
Adjustable
Output Voltage
18V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Width
4.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2384ACPZN-R7 Datasheet
Download the complete datasheet for Analog Devices ADP2384ACPZN-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

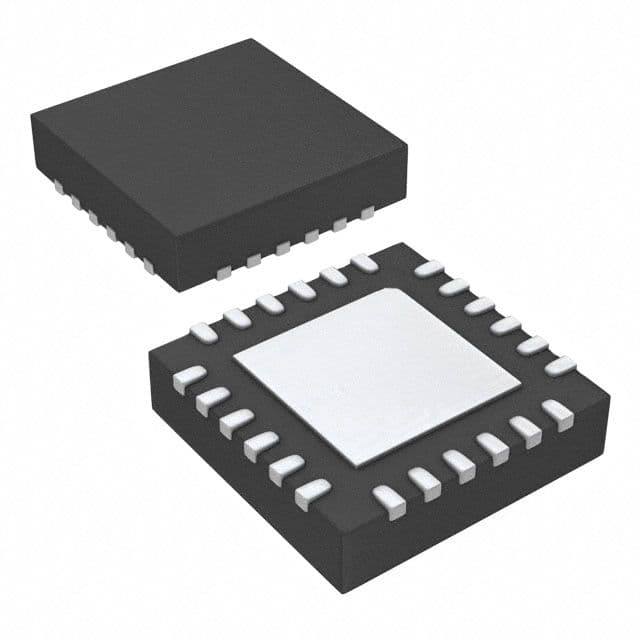

Product Images
