Synchronous, step-down DC-to-DC regulator with 1A maximum output current. Features a wide input voltage range from 4.5V to 36V and an adjustable output voltage from 600mV to 32.4V. Achieves up to 94% efficiency and supports external clock synchronization. Designed for surface mount applications with tin, matte contact plating. Operates across a temperature range of -40°C to 125°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2442ACPZ-R7 technical specifications.
General
Contact Plating
Tin, Matte
Efficiency
94%
Lead Free
Contains Lead
Max Input Voltage
36V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
32.4V
Min Output Voltage
600mV
Mount
Surface Mount
Nominal Supply Current
2mA
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Adjustable
Output Voltage
32.4V
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2442ACPZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADP2442ACPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

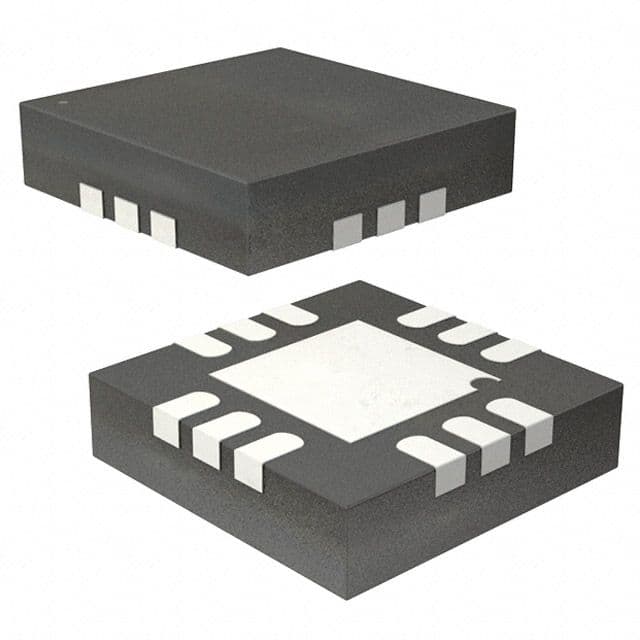

Product Images
