Analog Devices
ADP3339AKC-3.3-RL
IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.48 V DROPOUT, PDSO3, HALOGEN FREE, TO-261AA, SOT-223, 4 PIN, Fixed Positive Single Output LDO Regulator
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP3339AKC-3.3-RL technical specifications.
General
Accuracy
0.9%
Contact Plating
Tin, Lead
Max Input Voltage
6V
Min Input Voltage
2.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2A
Mount
Surface Mount
Number of Outputs
1
Output Type
Fixed
Output Voltage
3.3V
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
130uA
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADP3339AKC-3.3-RL Datasheet
Download the complete datasheet for Analog Devices ADP3339AKC-3.3-RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

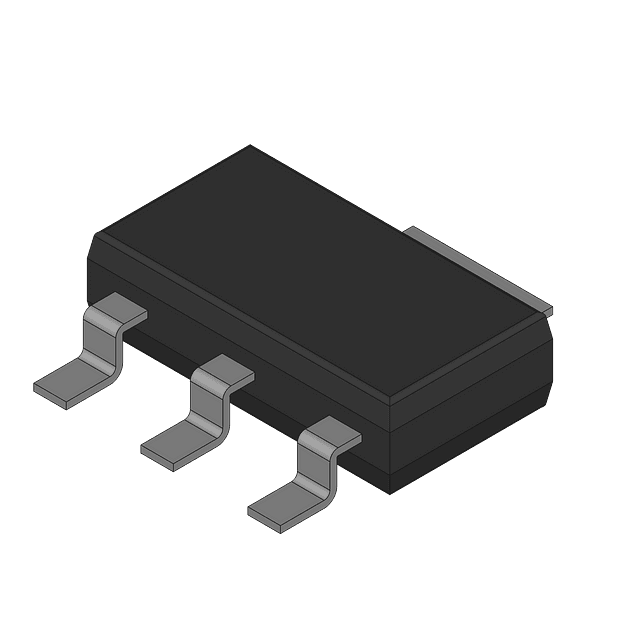

Product Images
