Analog Devices
ADP5042ACPZ-2-R7
Micro PMU with 0.8 A Buck, Two 300 mA LDOs, Supervisory, Watchdog and Manual Reset
Quick Jump:
Technical Specifications
Analog Devices ADP5042ACPZ-2-R7 technical specifications.
General
Contact Plating
Tin, Matte
Current - Output 1
800mA
Current - Output 2
300mA
Current - Output 3
300mA
Dropout Voltage
150mV
Interface
GPIO
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800A
Number of Outputs
3
Output Current
300mA
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage - Output 1
1.5V
Voltage - Output 2
1.8V
Voltage - Output 3
3.3V
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP5042ACPZ-2-R7 Datasheet
Download the complete datasheet for Analog Devices ADP5042ACPZ-2-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

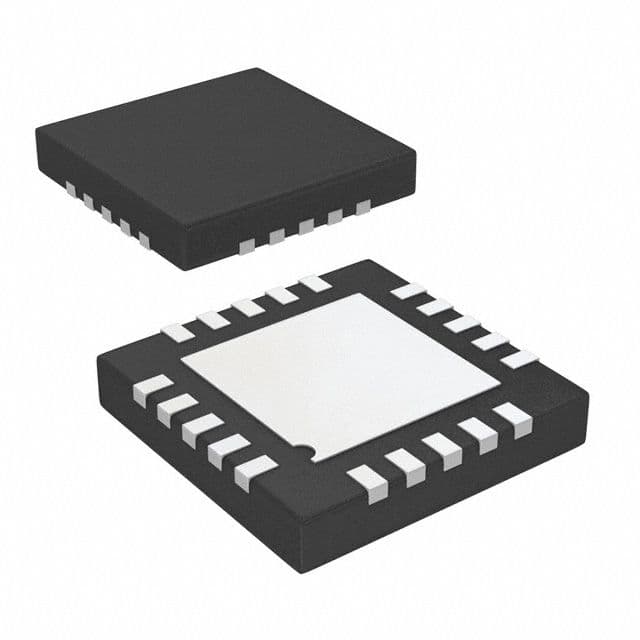

Product Images
