Precision 10.0V voltage reference IC, offering a stable 10V output with 0.1% tolerance. This ultracompact component operates from a maximum input voltage of 36V and delivers up to 10mA of output current. Featuring a low operating supply current of 1mA, it is suitable for applications requiring efficient power management. The device operates across a wide temperature range from -40°C to 125°C and is supplied in a compact R package.
PackageR
Current1mA
Current Rating1mA
Quick Jump:
Technical Specifications
Analog Devices ADR01ARZ technical specifications.
General
Package/Case
R
Current Rating
1mA
Height
1.5mm
Lead Free
Contains Lead
Length
5mm
Max Input Voltage
36V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Output Voltage
10V
Min Output Voltage
10V
Operating Supply Current
1mA
Output Current
10mA
Output Type
Fixed
Output Voltage
10V
Package Quantity
98
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
RoHS Compliant
Yes
Supply Current
1mA
Tolerance
0.1%
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADR01ARZ Datasheet
Download the complete datasheet for Analog Devices ADR01ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

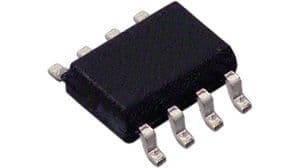

Product Images
