Analog Devices
ADR293GRUZ
1-OUTPUT THREE TERM VOLTAGE REFERENCE, 5V, PDSO8, ROHS COMPLIANT, MO-153AA, TSSOP-8
PackageTSSOP
Current15uA
Quick Jump:
Technical Specifications
Analog Devices ADR293GRUZ technical specifications.
General
| Package/Case | TSSOP |
| Height | 1.05mm |
| Lead Free | Contains Lead |
| Length | 3mm |
| Max Input Voltage | 18V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5mA |
| Max Output Voltage | 5V |
| Min Output Voltage | 5V |
| Operating Supply Current | 20uA |
| Output Current | 5mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reference Type | Series |
| RoHS Compliant | Yes |
| Series | XFET® |
| Supply Current | 15uA |
| Tolerance | 0.2% |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADR293GRUZ Datasheet
Download the complete datasheet for Analog Devices ADR293GRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

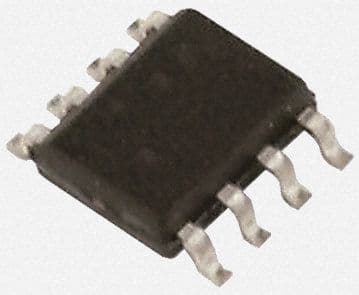

Product Images
