3V fixed output voltage reference IC, offering 0.1% initial tolerance and low operating supply current of 190µA. This series reference IC features sink/source capability up to 5mA, with a maximum input voltage of 18V. Operating across a wide temperature range from -40°C to 125°C, it is supplied in a TSOT package on tape and reel.
PackageTSOT
Quick Jump:
Technical Specifications
Analog Devices ADR363BUJZ-REEL7 technical specifications.
General
Package/Case
TSOT
Lead Free
Contains Lead
Max Input Voltage
18V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5mA
Max Output Voltage
3V
Min Output Voltage
3V
Operating Supply Current
190uA
Output Current
5mA
Output Type
Fixed
Output Voltage
3V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
3V
RoHS Compliant
Yes
Tolerance
0.1%
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADR363BUJZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADR363BUJZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

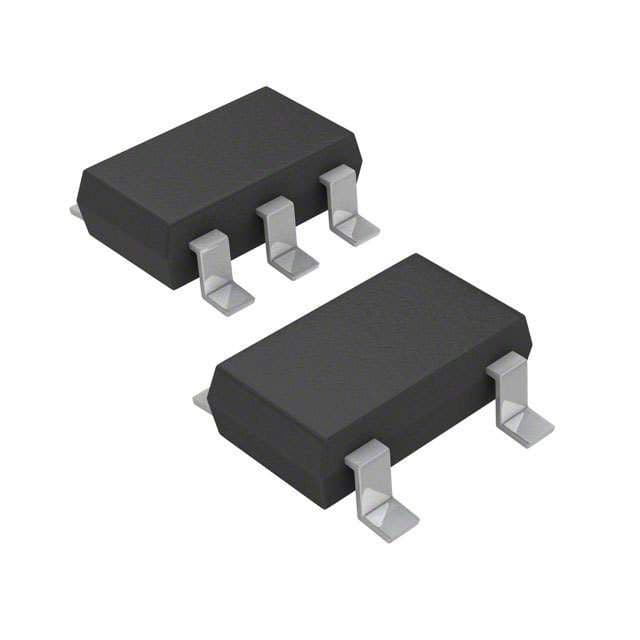

Product Images
