Precision micropower shunt mode voltage reference IC, outputting a fixed 2.5V with 0.1% tolerance. Features a 15mA maximum output current and operates from a 60µA cathode current. Housed in a compact SC package with dimensions of 2.2mm length, 1.35mm width, and 1mm height. Suitable for operation across a wide temperature range of -40°C to 125°C.
PackageSC
Quick Jump:
Technical Specifications
Analog Devices ADR5041BKSZ-R2 technical specifications.
General
Package/Case
SC
Cathode Current
60uA
Height
1mm
Lead Free
Contains Lead
Length
2.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
2.5025V
Min Output Voltage
2.5V
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
2.5V
RoHS Compliant
Yes
Series
ADR504
Tolerance
0.1%
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADR5041BKSZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADR5041BKSZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

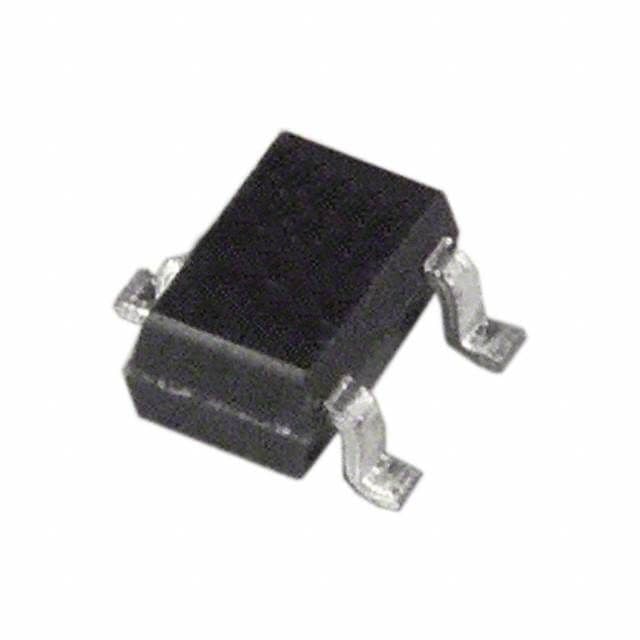

Product Images
