Analog Devices
ADR5043BKSZ-R2
Precision Micropower Shunt Mode Voltage Reference Applications (3.0 Vout)
PackageSC
Quick Jump:
Technical Specifications
Analog Devices ADR5043BKSZ-R2 technical specifications.
General
Package/Case
SC
Cathode Current
60uA
Height
1mm
Lead Free
Contains Lead
Length
2.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
3V
Min Output Voltage
3V
Output Current
15mA
Output Type
Fixed
Output Voltage
3V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
3V
RoHS Compliant
Yes
Series
ADR504
Tolerance
0.1%
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADR5043BKSZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADR5043BKSZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

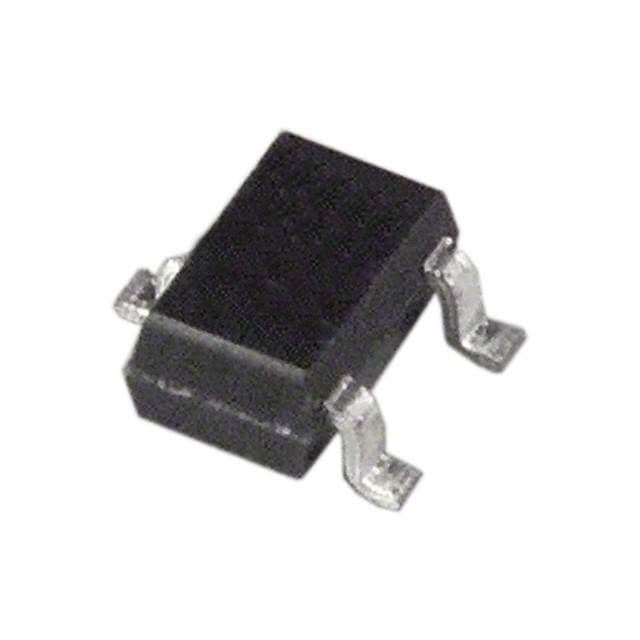

Product Images
