Analog Devices
ADR540BKSZ-REEL7
IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 4.096 V, PDSO3, ROHS COMPLIANT, EIAJ, SC-70, 3 PIN, Voltage Reference
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADR540BKSZ-REEL7 technical specifications.
General
| Package/Case | SC |
| Cathode Current | 50uA |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 4.096V |
| Min Output Voltage | 4.096V |
| Mount | Surface Mount |
| Output Current | 15mA |
| Output Type | Fixed |
| Output Voltage | 4.1V |
| Packaging | Tape and Reel |
| Reference Type | Shunt |
| RoHS Compliant | Yes |
| Tolerance | 0.2% |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADR540BKSZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADR540BKSZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

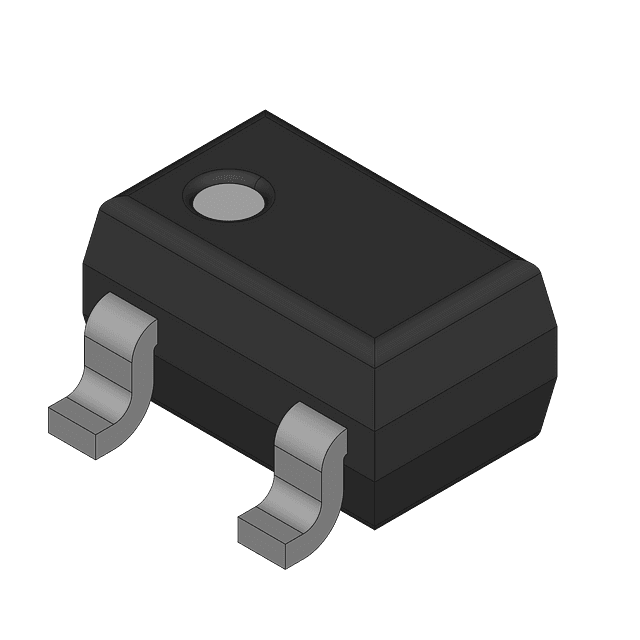

Product Images
