400 MHz Digital Signal Processor (DSP) featuring a Blackfin core architecture. This surface-mount BGA package offers a 32-bit data bus width and operates at a maximum frequency of 400MHz. It includes 48KB of RAM, 1KB of memory, and supports SPI, SSP, and UART interfaces. Power is supplied via a voltage range of 800mV to 3.6V, with a nominal supply current of 125mA. Operating temperature ranges from -40°C to 85°C.
Frequency400MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADSP-BF531SBB400 technical specifications.
General
Package/Case
BGA
Core Architecture
Blackfin
Data Bus Width
32b
Frequency
400MHz
Height
2.5mm
Interface
SPI, SSP, UART
Lead Free
Contains Lead
Max Frequency
400MHz
Max Operating Temperature
85°C
Memory Size
1KB
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
800mV
Mount
Surface Mount
Nominal Supply Current
125mA
Number of I/Os
16
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Package Quantity
1
Packaging
Tray
Radiation Hardening
No
RAM Size
48KB
RoHS Compliant
No
Series
Blackfin®
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices ADSP-BF531SBB400 Datasheet
Download the complete datasheet for Analog Devices ADSP-BF531SBB400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

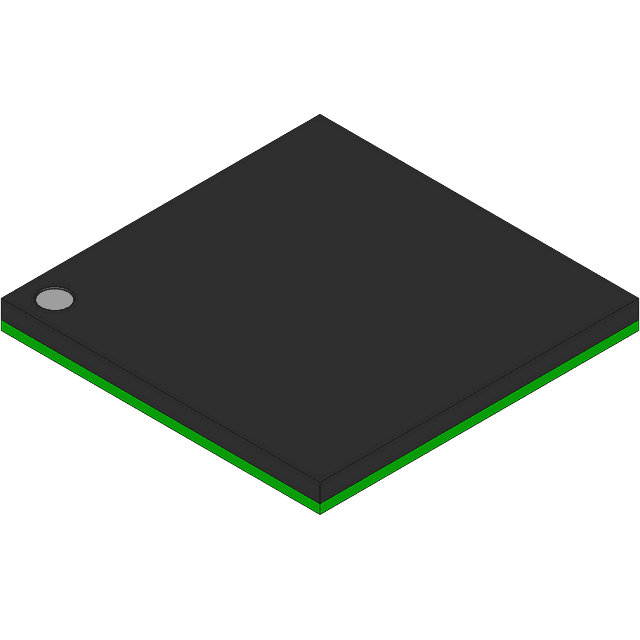

Product Images
