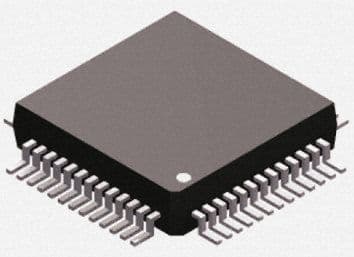

ADUC848BSZ8-3

16-Bit MCU, 8052 Core, 10-Ch ADC, 8KB Flash, QFP, SM

This 8-bit microcontroller features a 24-/16-bit multichannel Analog-to-Digital Converter (ADC) with 10 channels and a 1.37 kS/s sampling rate. It boasts an 8052 core architecture operating at up to 12.58MHz, with 62kB of embedded FLASH memory and 2.25kB of RAM. Connectivity is provided via I2C, SPI, and UART interfaces, alongside 24 programmable I/O pins and 3 timers. Designed for surface mounting in a QFP package, this component operates from a 2.7V to 3.6V supply, with a temperature range of -40°C to 125°C.

Frequency12.85MHz

PackageQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Analog Devices ADUC848BSZ8-3 technical specifications.

General

Access Time	12.6us
Package/Case	QFP
Contact Plating	Tin, Matte
Core Architecture	8052
Data Bus Width	8b
Frequency	12.85MHz
Height	2mm
Interface	I2C, SPI, UART, USART
Lead Free	Contains Lead
Length	10mm
Max Frequency	12.58MHz
Max Operating Temperature	125°C
Max Supply Voltage	3.6V
Memory Size	8KB
Memory Type	FLASH,
Min Operating Temperature	-40°C
Min Supply Voltage	2.7V
Mount	Surface Mount
Number of ADC Channels	10
Number of I/Os	34
Number of I2C Channels	1
Number of Programmable I/O	24
Number of PWM Channels	2
Number of SPI Channels	1
Number of Timers/Counters	3
Number of UART Channels	1
Number of USB Channels	0
Operating Supply Voltage	3V
Oscillator Type	Internal
Package Quantity	96
Packaging	Tray
Peripherals	POR, PWM, WDT, Temp Sensor
RAM Size	2.25KB
Resolution	16b
RoHS Compliant	Yes
Sampling Rate	1.37KS/s
Series	MicroConverter® ADuC8xx
Watchdog Timer	Yes
Width	10mm
