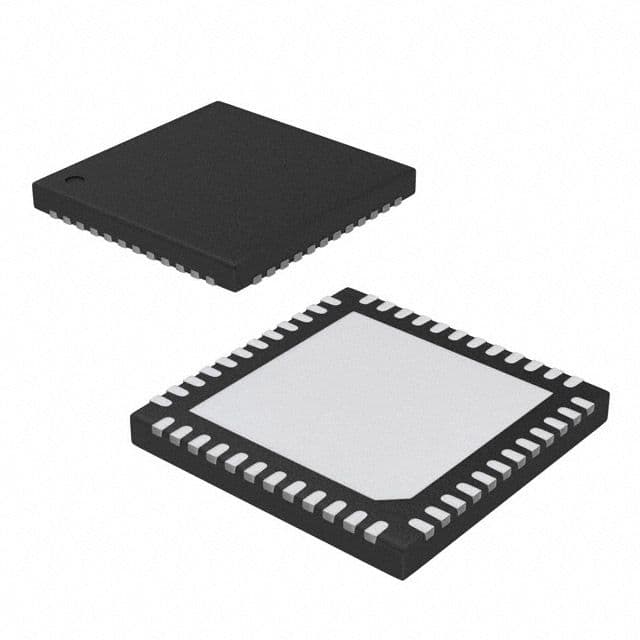

32-bit ARM microcontroller featuring 128KB FLASH memory and 8KB RAM. Operates at up to 20MHz with 11 ADC channels offering 24-bit resolution and a 3.906kS/s sampling rate. Supports I2C, SPI, and UART/USART interfaces, with 19 programmable I/Os and 2 timers. Designed for surface mounting with a 48LFCSP package, operating from 1.8V to 3.6V and a temperature range of -40°C to 125°C. Includes POR, PWM, WDT, and DMA peripherals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADUCM360BCPZ128-R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADUCM360BCPZ128-R7 technical specifications.
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 16MHz |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Contains Lead |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of ADC Channels | 11 |
| Number of I/Os | 19 |
| Number of Programmable I/O | 19 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Peripherals | POR, PWM, WDT, DMA |
| RAM Size | 8KB |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 3.906KS/s |
| Series | ADuCM |
| RoHS | Compliant |
