Technical Specifications
Analog Devices ADUM3200WBRZ technical specifications.
General
Package/Case
R
Channel Type
Unidirectional
Data Rate
25Mbps
Isolated Power
No
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Nominal Supply Current
7.7mA
Number of Channels
2
Operating Supply Current
7.7mA
Package Quantity
98
Packaging
Rail/Tube
Propagation Delay
50ns
Pulse Width Distortion (PWD)
3ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
iCoupler®
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADUM3200WBRZ Datasheet
Download the complete datasheet for Analog Devices ADUM3200WBRZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

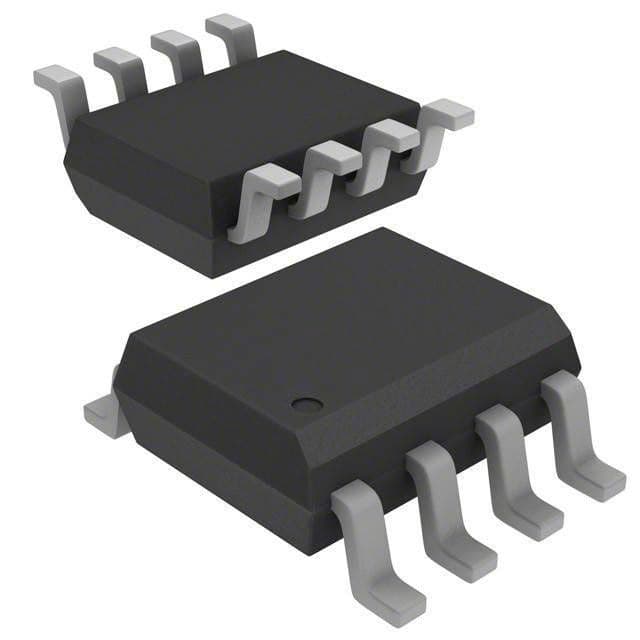

Product Images
