Dual-channel unidirectional isolator with integrated DC/DC converter, providing 50mW isolated power. Features a 1Mbps data rate, 70ns propagation delay, and 3ns pulse width distortion. Operates from a 2.7V to 5.5V supply, delivering up to 10mA output current. Packaged in a R case with tin, matte contact plating, suitable for general-purpose applications.
PackageR
Power50mW
Quick Jump:
Technical Specifications
Analog Devices ADUM5241ARZ-RL7 technical specifications.
General
Package/Case
R
Channel Type
Unidirectional
Contact Plating
Tin, Matte
Data Rate
1Mbps
Isolated Power
Yes
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Channels
2
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
50mW
Propagation Delay
70ns
Pulse Width Distortion (PWD)
3ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
IsoPower®, iCoupler®
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADUM5241ARZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADUM5241ARZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

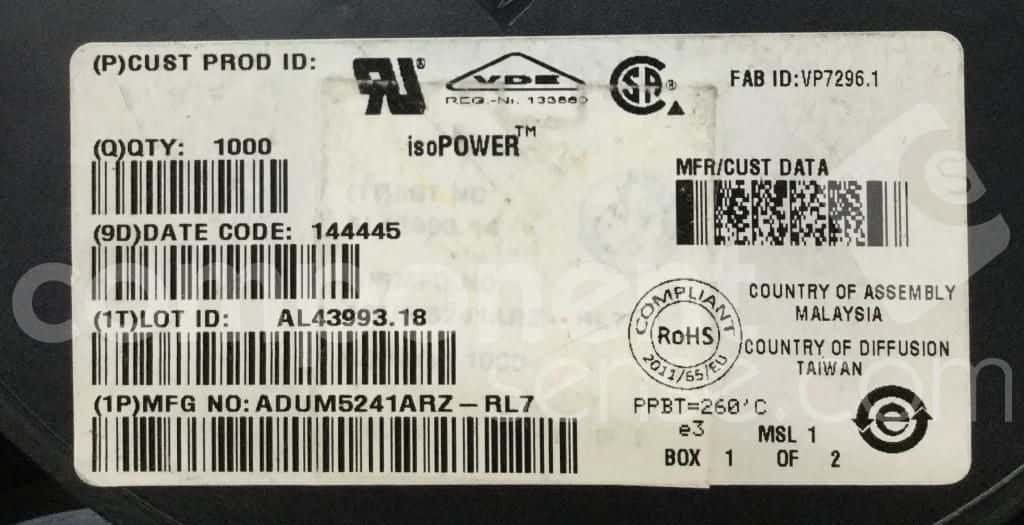

Product Images
