Quad-channel isolator with integrated DC-to-DC converter, offering 2.5kV isolation and 25Mbps data rate. Features unidirectional channels, a 500mW power dissipation, and a 100mA max output current. Operates within a 3V to 5.5V supply voltage range, with a propagation delay of 100ns and pulse width distortion of 40ns. Packaged in a SOIC form factor, this RoHS compliant component is suitable for general-purpose applications.
PackageSOIC
Current19mA
Power500mW
Quick Jump:
Technical Specifications
Analog Devices ADUM5402ARWZ technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Contact Plating
Tin, Matte
Data Rate
25Mbps
Depth
2.35mm
Isolated Power
Yes
Isolation Voltage
2.5kV
Lead Free
Contains Lead
Length
10.5mm
Max Input Current
20uA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of Channels
4
Package Quantity
47
Packaging
Rail/Tube
Power Dissipation
500mW
Propagation Delay
100ns
Pulse Width Distortion (PWD)
40ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IsoPower®, iCoupler®
Supply Current
19mA
Type
General Purpose
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADUM5402ARWZ Datasheet
Download the complete datasheet for Analog Devices ADUM5402ARWZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

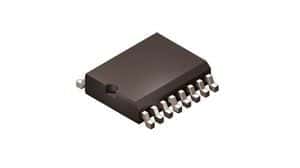

Product Images
