6-channel digital isolator with 1kV isolation voltage, supporting 25Mbps data rates. Features unidirectional channels, 75ns propagation delay, and 25ns pulse width distortion. Operates from a 3V to 5.5V supply voltage with a maximum supply current of 1.16mA. Packaged in a 20-pin QSOP with tin, matte contact plating, and a temperature range of -40°C to 105°C.
PackageQSOP
Current1.16mA
Quick Jump:
Technical Specifications
Analog Devices ADUM7641ARQZ technical specifications.
General
Package/Case
QSOP
Channel Type
Unidirectional
Contact Plating
Tin, Matte
Data Rate
25Mbps
Depth
1.65mm
Isolated Power
No
Isolation Voltage
1kV
Lead Free
Contains Lead
Length
8.76mm
Max Input Current
10uA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of Channels
6
Package Quantity
56
Packaging
Rail/Tube
Propagation Delay
75ns
Pulse Width Distortion (PWD)
25ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
iCoupler®
Supply Current
1.16mA
Type
General Purpose
Width
4.01mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADUM7641ARQZ Datasheet
Download the complete datasheet for Analog Devices ADUM7641ARQZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

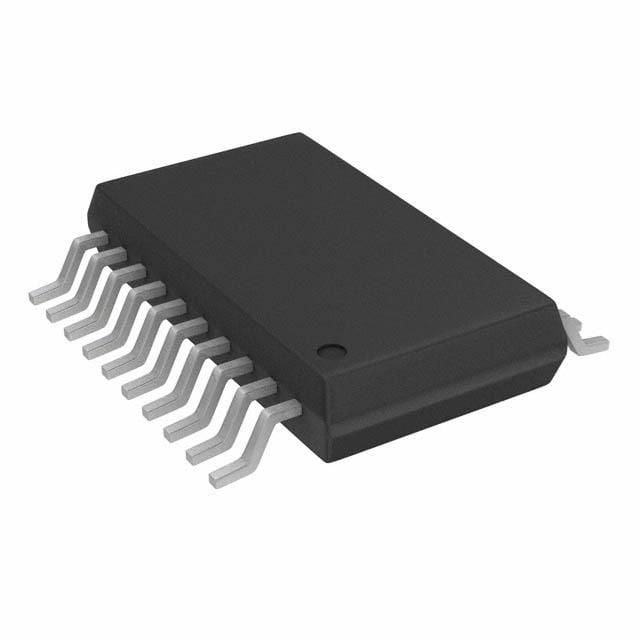

Product Images
