Technical Specifications
Analog Devices ADUM7643ARQZ-RL7 technical specifications.
General
Package/Case
QSOP
Channel Type
Unidirectional
Contact Plating
Tin, Matte
Data Rate
25Mbps
Isolated Power
No
Isolation Voltage
420V
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Number of Channels
6
Package Quantity
1000
Packaging
Tape and Reel
Propagation Delay
75ns
Pulse Width Distortion (PWD)
25ns
RoHS Compliant
Yes
Series
iCoupler®
Supply Current
1.16mA
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADUM7643ARQZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADUM7643ARQZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

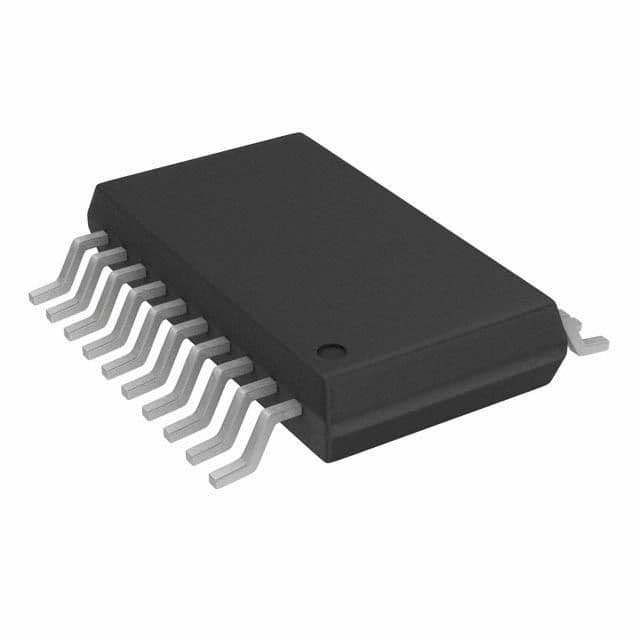

Product Images
