MEMS single-axis gyroscope, Z-axis, with a ±300°/s measurement range. Features a 2.5kHz -3dB bandwidth and a 0.01Hz bandwidth. Operates from a 4.75V to 5.25V supply voltage, consuming a nominal 3.5mA. Housed in a 7mm x 7mm x 3mm BGA package with tin/lead contact plating. Suitable for automotive applications with a -40°C to 105°C operating temperature range.
PackageBGA
Current3.5mA
Quick Jump:
Technical Specifications
Analog Devices ADXRS620BBGZ technical specifications.
General
-3db Bandwidth
2.5kHz
Axis
Z
Bandwidth
0.01Hz
Package/Case
BGA
Contact Plating
Tin, Lead
Height
3mm
Lead Free
Contains Lead
Length
7mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
3.5mA
Operating Supply Current
3.5mA
Output Type
Analog
Package Quantity
20
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3.5mA
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADXRS620BBGZ Datasheet
Download the complete datasheet for Analog Devices ADXRS620BBGZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

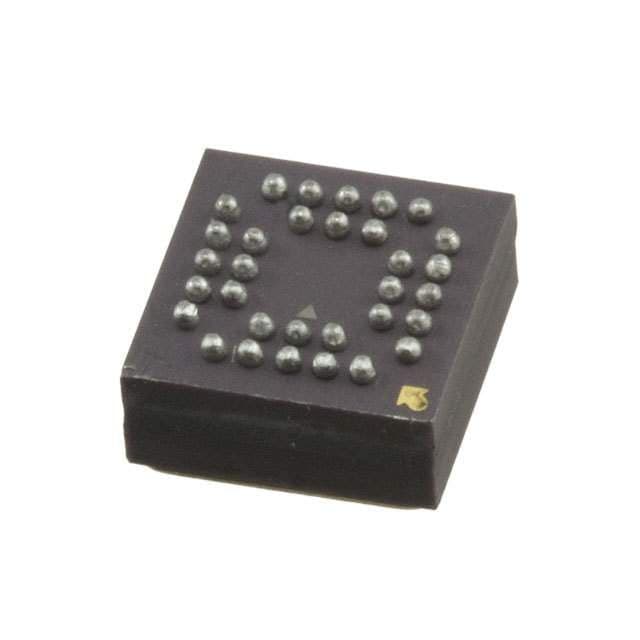

Product Images
