Quad 8-bit multiplying CMOS digital-to-analog converter (DAC) featuring 4 DAC channels and 8-bit resolution. Achieves a conversion rate of 5.26MS/s with a settling time of 190ns. Offers a full-scale error of 1LSB and integral nonlinearity (INL) of 0.25LSB. Operates with a supply voltage of 5V, supporting input voltages from -10V to 10V and output voltages from 0uV to 20V. Packaged in a PDIP with tin, matte contact plating, this RoHS compliant component has a power dissipation of 5mW and an operating temperature range of -55°C to 125°C.
PackagePDIP
Power5mW
Quick Jump:
Technical Specifications
Analog Devices DAC8408GPZ technical specifications.
General
Package/Case
PDIP
Contact Plating
Tin, Matte
Conversion Rate
5.26MS/s
Differential Output
No
Full Scale Error
1LSB
Height
4.95mm
Integral Nonlinearity (INL)
0.25LSB
Interface
Parallel
Lead Free
Contains Lead
Length
39.75mm
Max Input Voltage
10V
Min Input Voltage
-10V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Voltage
20V
Min Output Voltage
0uV
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Bits
8
Number of Channels
4
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Operating Supply Voltage
5V
Package Quantity
13
Packaging
Rail/Tube
Power Dissipation
5mW
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
5.26MS/s
Settling Time
190ns
Width
14.73mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices DAC8408GPZ Datasheet
Download the complete datasheet for Analog Devices DAC8408GPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

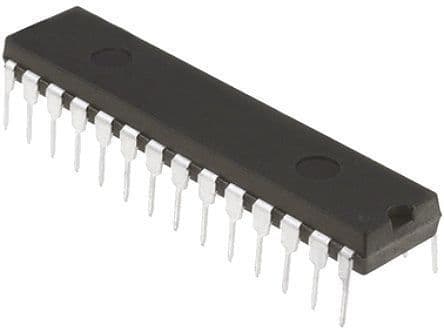

Product Images
