Quad 12-bit Digital-to-Analog Converter (DAC) with voltage output and readback functionality. Features a 167 kS/s conversion rate, 12-bit resolution, and 4 independent DAC channels. Operates with a dual supply voltage range of ±14.25V to ±15.75V and a single supply voltage of 4.75V to 5.25V. Offers a settling time of 6 µs and a slew rate of 2.2V/µs. Packaged in a 39-unit rail/tube with a matte tin contact plating.
PackageP
Power330mW
Quick Jump:
Technical Specifications
Analog Devices DAC8412FPCZ technical specifications.
General
Package/Case
P
Contact Plating
Tin, Matte
Conversion Rate
167KS/s
Differential Output
No
Dual Supply Voltage
15V
Full Scale Error
8LSB
Height
3.94mm
Integral Nonlinearity (INL)
4LSB
Interface
Parallel
Lead Free
Contains Lead
Length
11.58mm
Max Dual Supply Voltage
15.75V
Min Dual Supply Voltage
14.25V
Max Input Voltage
20V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Voltage
20V
Min Output Voltage
2.5V
Max Power Dissipation
1W
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of Bits
12
Number of Channels
4
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Number of Outputs
4
Operating Supply Voltage
5V
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
39
Packaging
Rail/Tube
Power Dissipation
330mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
167KS/s
Settling Time
6us
Slew Rate
2.2V/µs
Width
11.58mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices DAC8412FPCZ Datasheet
Download the complete datasheet for Analog Devices DAC8412FPCZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

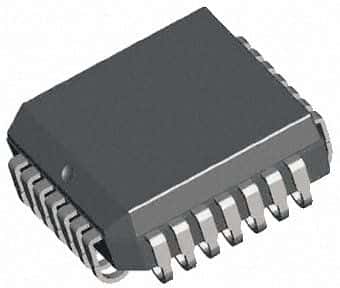

Product Images
