Quad 12-bit Digital-to-Analog Converter (DAC) with voltage output and readback functionality. Features a 167 kS/s conversion rate and a 6 µs settling time. Operates with a dual supply voltage range of ±14.25V to ±15.75V and a single supply voltage of 4.75V to 5.25V. Offers a 1.5 LSB Integral Nonlinearity (INL) and a full-scale error of 8 LSB. Packaged in a CDIP with tin/lead contact plating, suitable for operation between -55°C and 125°C.
PackageCDIP
Power330mW
Quick Jump:
Technical Specifications
Analog Devices DAC8413BT/883C technical specifications.
General
Package/Case
CDIP
Contact Plating
Tin, Lead
Conversion Rate
167KS/s
Dual Supply Voltage
15V
Full Scale Error
8LSB
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Contains Lead
Max Dual Supply Voltage
15.75V
Min Dual Supply Voltage
14.25V
Max Input Voltage
20V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Voltage
20V
Min Output Voltage
2.5V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of Converters
4
Number of DAC Channels
4
Operating Supply Voltage
5V
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
12
Packaging
Rail/Tube
Power Dissipation
330mW
Resolution
12b
RoHS Compliant
No
Sampling Rate
167KS/s
Series
DAC8413
Settling Time
6us
Slew Rate
2.2V/µs
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices DAC8413BT/883C Datasheet
Download the complete datasheet for Analog Devices DAC8413BT/883C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

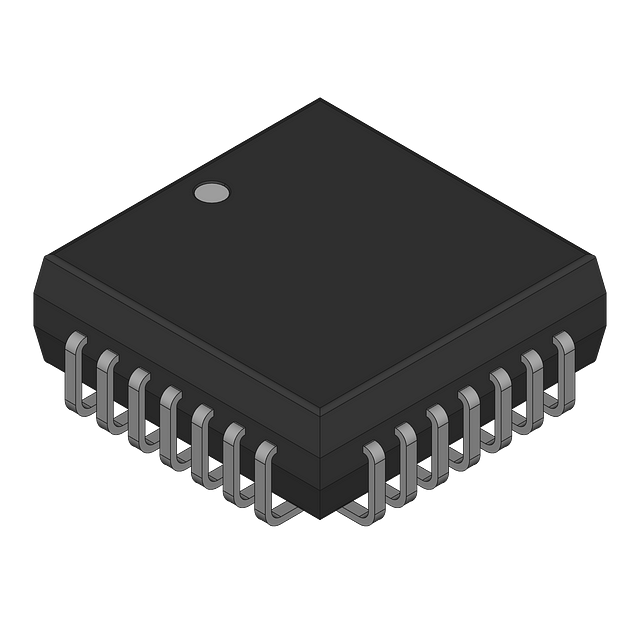

Product Images
