Analog Devices
DC1012A-B
16-Bit 1-Channel Analog-to-Digital Converter, I2C/Serial Interface, 5V Supply
The DC1012A-B is a 16-bit analog-to-digital converter with a single channel and a sampling rate of 7.5 samples per second. It operates from a 5V supply voltage and features an I2C or serial interface. The device is available as an evaluation kit and is part of the Easy Drive series. It is not Reach SVHC compliant. The DC1012A-B is packaged individually.
Quick Jump:
Technical Specifications
Analog Devices DC1012A-B technical specifications.
General
| Evaluation Kit | Yes |
| Interface | I2C, Serial |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Reach SVHC Compliant | No |
| Sampling Rate | 7.5S/s |
| Series | Easy Drive™ |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices DC1012A-B Datasheet
Download the complete datasheet for Analog Devices DC1012A-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

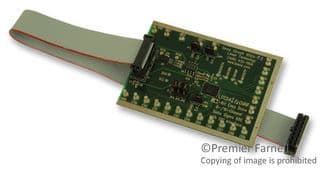

Product Images
