The EVAL-AD7982SDZ is an 18-bit analog-to-digital converter from Analog Devices. It operates over a temperature range of -40°C to 85°C and is available in a module package. The device is RoHS compliant and features a sampling rate of 1 MSPS. It is designed for use with SPI interfaces and operates at a supply voltage of 2.625V.
PackageModule
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices EVAL-AD7982SDZ technical specifications.
General
| Package/Case | Module |
| Interface | SPI, Serial |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of Bits | 18 |
| Operating Supply Voltage | 2.625V |
| Package Quantity | 1 |
| Packaging | Box |
| Reach SVHC Compliant | No |
| Resolution | 18b |
| RoHS Compliant | Yes |
| Sampling Rate | 1000000S/s |
| Series | PulSAR® |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices EVAL-AD7982SDZ Datasheet
Download the complete datasheet for Analog Devices EVAL-AD7982SDZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

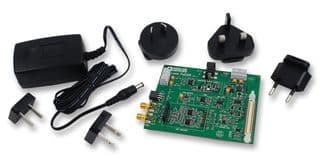

Product Images
