Micropower shunt voltage reference IC, fixed 1.235V output with 0.3% tolerance. Features a low supply current of 8µA and a cathode current as low as 10µA. Maximum output current capability of 20mA. Packaged in a TO-92 through-hole mount configuration. Operates within a 0°C to 70°C temperature range.
PackageTO-92
Current8uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices LT1004CZ-1.2#PBF technical specifications.
General
Package/Case
TO-92
Cathode Current
10uA
Height
4.57mm
Lead Free
Lead Free
Length
4.57mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
20mA
Max Output Voltage
1.235V
Min Output Voltage
1.225V
Mount
Through Hole
Number of Channels
1
Output Current
20mA
Output Voltage
1.235V
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
1.235V
RoHS Compliant
Yes
Supply Current
8uA
Tolerance
0.3%
Width
3.56mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1004CZ-1.2#PBF Datasheet
Download the complete datasheet for Analog Devices LT1004CZ-1.2#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

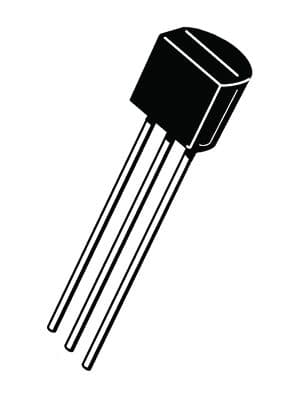

Product Images
