Analog Devices
LT1009S8
LT1009 Series - 2.5V Reference; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LT1009S8 technical specifications.
General
Package/Case
SOIC
Cathode Current
400uA
Lead Free
Contains Lead
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Mount
Surface Mount
Output Current
10mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
100
Packaging
Rail/Tube
Reference Type
Shunt
RoHS Compliant
No
Tolerance
0.4%
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices LT1009S8 Datasheet
Download the complete datasheet for Analog Devices LT1009S8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

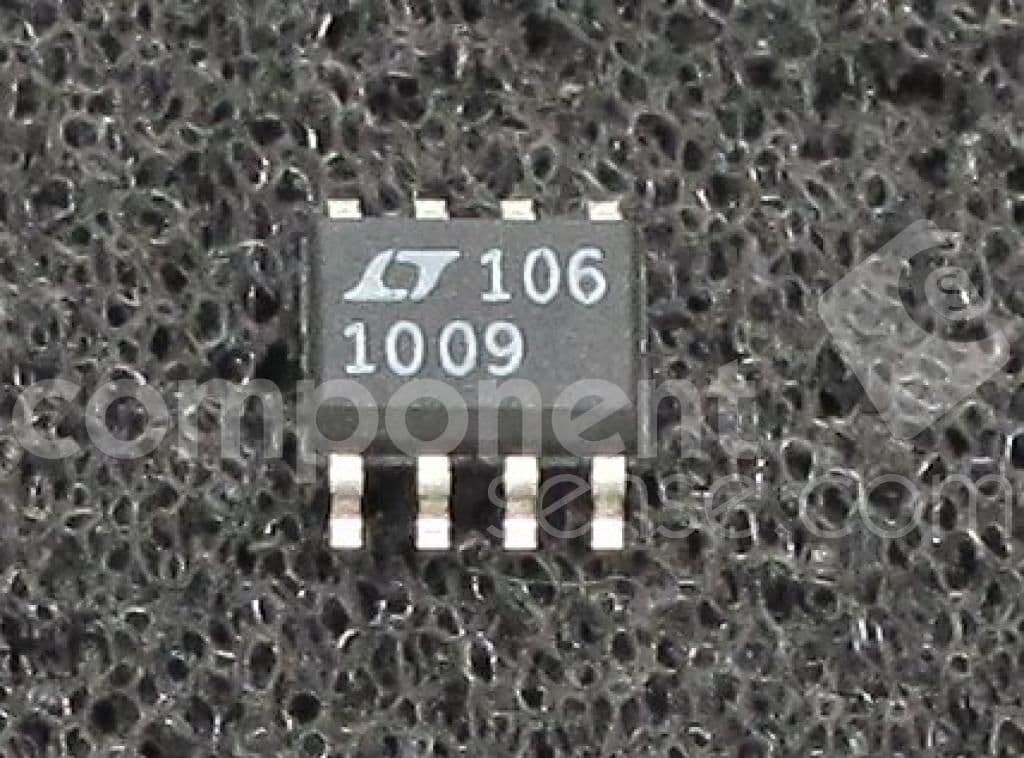

Product Images
