The LT1076CT7#PBF is a 35V 10A flyback DC/DC controller in a TO-220 package. It operates over a temperature range of 0°C to 70°C and is RoHS compliant. The device has a maximum input voltage of 45V and a minimum input voltage of 7.3V. It is designed for use in power management applications and is available in rail/Tube packaging.
PackageTO-220
Quick Jump:
Technical Specifications
Analog Devices LT1076CT7#PBF technical specifications.
General
| Package/Case | TO-220 |
| Lead Free | Lead Free |
| Max Input Voltage | 45V |
| Min Input Voltage | 7.3V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Voltage | 35V |
| Min Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Output Current | 10A |
| Output Type | Adjustable |
| Output Voltage | 35V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1076CT7#PBF Datasheet
Download the complete datasheet for Analog Devices LT1076CT7#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

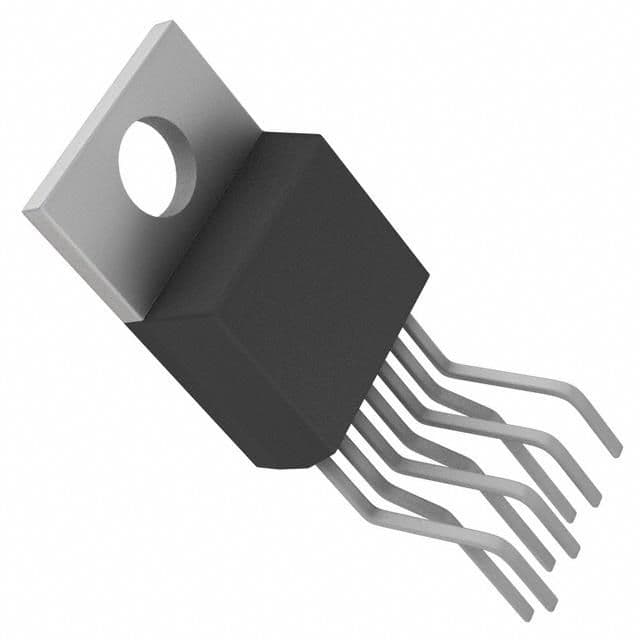

Product Images
