Analog Devices
LT1117CST
LT1117 - 800mA Low Dropout Positive Regulators Adjustable and Fixed 2.85V,3.3V, 5V; Package: SOT; Pins: 3; Temperature Range: 0°C to 70°C
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1117CST technical specifications.
General
Package/Case
SOT-223
Dropout Voltage
1.1V
Lead Free
Contains Lead
Min Current Limit
800mA
Max Input Voltage
15V
Min Input Voltage
2.45V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Voltage
13.7V
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
75dB
Radiation Hardening
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices LT1117CST Datasheet
Download the complete datasheet for Analog Devices LT1117CST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

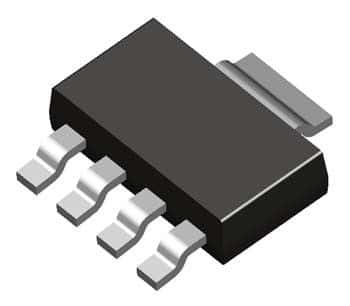

Product Images
