Positive adjustable linear voltage regulator (LDO) with a maximum output current of 700mA. Features a wide input voltage range from 4.15V to 30V and an adjustable output voltage up to 30V. Dropout voltage is 450mV, with a typical quiescent current of 50uA. Operates across a temperature range of 0°C to 125°C and is housed in a 5-pin TO-220 package. This RoHS compliant component offers a Power Supply Rejection Ratio (PSRR) of 64dB.
PackageT
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1129CT#PBF technical specifications.
General
Package/Case
T
Dropout Voltage
450mV
Height
9.4mm
Lead Free
Lead Free
Length
10.54mm
Max Input Voltage
30V
Min Input Voltage
4.15V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
700mA
Max Output Voltage
30V
Min Output Voltage
3.8V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
50uA
Output Current
700mA
Output Type
Adjustable
Output Voltage
30V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
64dB
Quiescent Current
50uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
3.75V
RoHS Compliant
Yes
Width
4.57mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1129CT#PBF Datasheet
Download the complete datasheet for Analog Devices LT1129CT#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

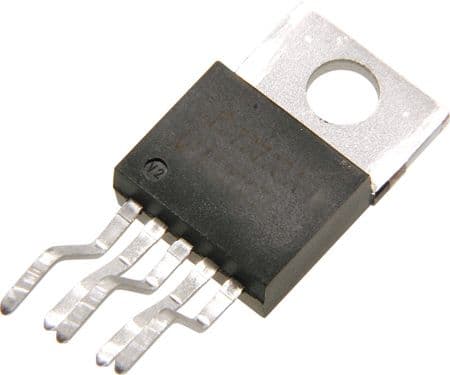

Product Images
