RS-232 transceiver, surface mount, SOIC package. Features 2 drivers and 2 receivers, operating from a 4.5V to 5.5V supply with a typical 5V operating voltage. Supports data rates up to 250Kbps and includes ESD protection. RoHS compliant with a maximum supply current of 16mA.
PackageSOIC
Current16mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LT1180ACSW#PBF technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 250Kbps |
| ESD Protection | Yes |
| Height | 2.34mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 11.76mm |
| Logic Function | Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 16mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 16mA |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1180ACSW#PBF Datasheet
Download the complete datasheet for Analog Devices LT1180ACSW#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

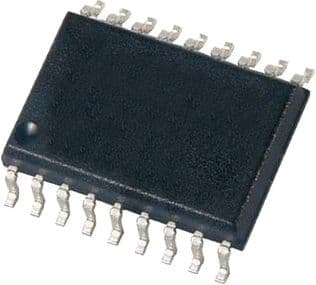

Product Images
