Analog Devices
LT1374IR#PBF
SEPIC DC/DC Controller, Adjustable/Fixed, 21.5V, 4.5A, Positive Output, Lead Free
The LT1374IR#PBF SEPIC DC/DC controller from Analog Devices operates over a temperature range of -40°C to 125°C. It features an adjustable/fixed output voltage of 21.5V and an output current of 4.5A. The device is packaged in a lead-free R package with a height of 3.175mm and a length of 10.54mm. It is RoHS compliant and has a maximum input voltage of 25V and a minimum input voltage of 5V.
PackageR
Quick Jump:
Technical Specifications
Analog Devices LT1374IR#PBF technical specifications.
General
| Package/Case | R |
| Height | 3.175mm |
| Lead Free | Lead Free |
| Length | 10.54mm |
| Max Input Voltage | 25V |
| Min Input Voltage | 5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 8.5A |
| Max Output Voltage | 21.5V |
| Min Output Voltage | 2.42V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 4.5A |
| Output Type | Adjustable, Fixed |
| Output Voltage | 21.5V |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | SEPIC |
| Width | 10.922mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1374IR#PBF Datasheet
Download the complete datasheet for Analog Devices LT1374IR#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

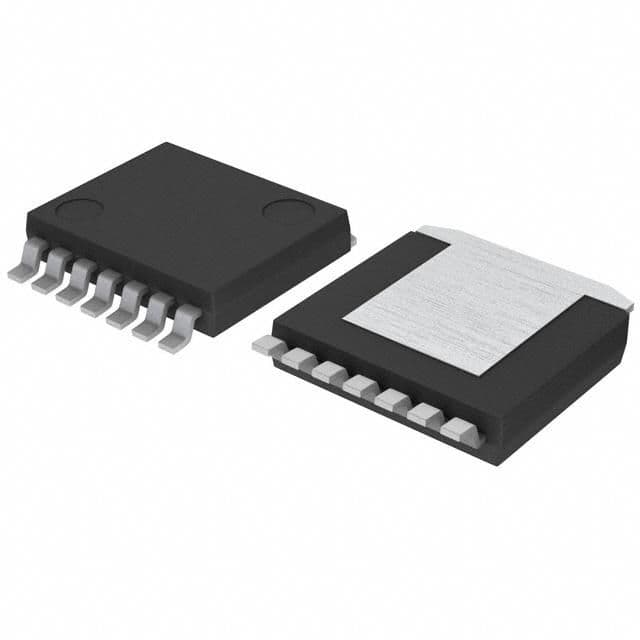

Product Images
