Analog Devices
LT1506IR
LT1506 - 4.5A, 500kHz Step-Down Switching Regulator; Package: DD PAK; Pins: 7; Temperature Range: -40°C to 85°C
PackageTO-263-8
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LT1506IR technical specifications.
General
| Package/Case | TO-263-8 |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 4.5A |
| Output Type | Adjustable |
| Output Voltage | 3.3V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Synchronous Rectifier | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices LT1506IR Datasheet
Download the complete datasheet for Analog Devices LT1506IR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

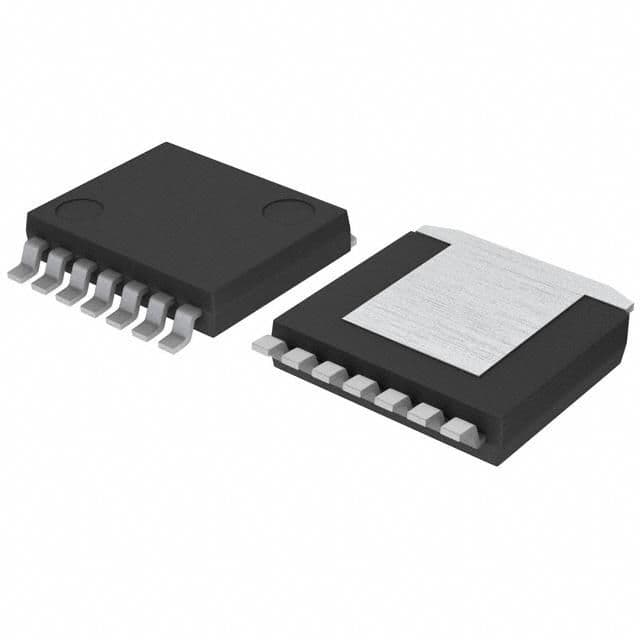

Product Images
