High-performance comparator IC featuring a 44V maximum supply voltage and 22V dual supply capability. This single-channel, push-pull output device offers a fast 3µs response time and 5.5µs propagation delay. Key specifications include a 110dB Common Mode Rejection Ratio and Power Supply Rejection Ratio, with a low input bias current of 50nA. The component operates across a wide temperature range of -40°C to 85°C and is housed in a compact SOT23-5 SMD/SMT package.
PackageS
Current55uA
Quick Jump:
Technical Specifications
Analog Devices LT1716IS5#TRMPBF technical specifications.
General
Package/Case
S
Common Mode Rejection Ratio
110dB
Height
0.9mm
Input Bias Current
50nA
Input Offset Voltage (Vos)
1.6mV
Lead Free
Lead Free
Length
2.9mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
1.35V
Max Input Current
50nA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
44V
Min Supply Voltage
2.7V
Number of Channels
1
Number of Elements
1
Output Current
20mA
Output Type
PUSH-PULL
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
110dB
Propagation Delay
5.5us
Quiescent Current
60uA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
3us
RoHS Compliant
Yes
Series
Over-The-Top®
Supply Current
55uA
Technology
BIPOLAR
Termination
SMD/SMT
Type
General Purpose
Voltage Gain
113.98dB
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1716IS5#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT1716IS5#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

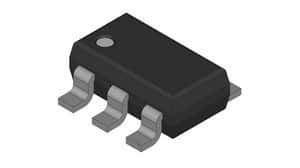

Product Images
