The LT1931AES5#PBF is a single output adjustable linear regulator from Analog Devices. It is packaged in a SOT-23 package and is available in cut tape form. The device operates over a temperature range of -40°C to 85°C and provides an output current of up to 300mA. The output voltage is adjustable and can be set to -5V. The LT1931AES5#PBF is RoHS compliant but does not meet Reach SVHC requirements.
PackageSOT-23
Quick Jump:
Technical Specifications
Analog Devices LT1931AES5#PBF technical specifications.
General
| Package/Case | SOT-23 |
| Min Input Voltage | 2.45V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 300mA |
| Output Type | Adjustable |
| Output Voltage | -5V |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1931AES5#PBF Datasheet
Download the complete datasheet for Analog Devices LT1931AES5#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

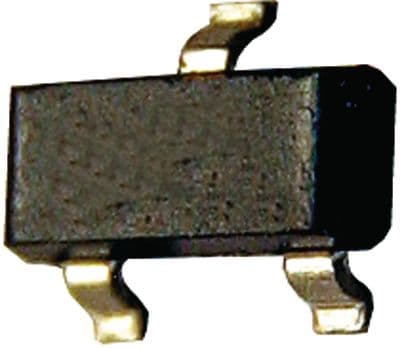

Product Images
