Positive fixed 3.3V linear voltage regulator IC with 1.5A output current. Features a low 340mV dropout voltage and a maximum input voltage of 20V. Operates from a minimum input voltage of 2.1V with 1mA quiescent current. Offers a Power Supply Rejection Ratio (PSRR) of 63dB and a minimum current limit of 1.6A. Packaged in a 16-pin TSSOP, this RoHS compliant component operates across a wide temperature range of -40°C to 125°C.
PackageTSSOP
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1963AEFE-3.3#PBF technical specifications.
General
Package/Case
TSSOP
Dropout Voltage
340mV
Lead Free
Lead Free
Min Current Limit
1.6A
Max Input Voltage
20V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1mA
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
95
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
63dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1963AEFE-3.3#PBF Datasheet
Download the complete datasheet for Analog Devices LT1963AEFE-3.3#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

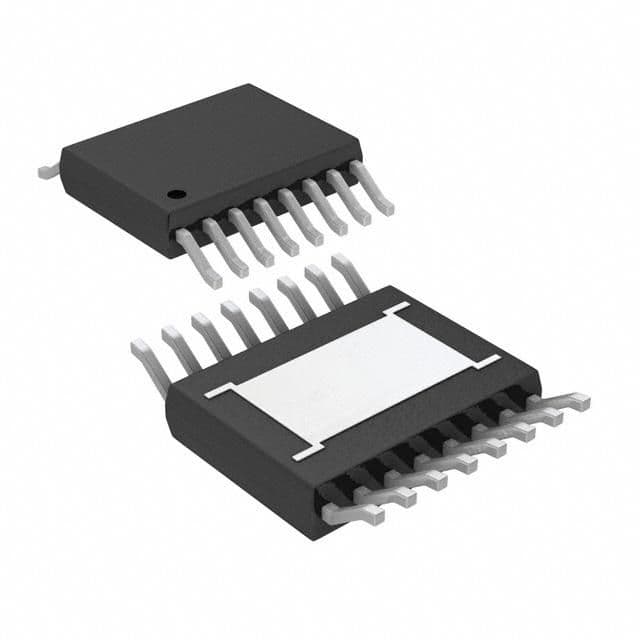

Product Images
