Adjustable positive linear voltage regulator IC, delivering up to 1.5A output current. Features a low dropout voltage of 340mV and a wide input voltage range from 2.1V to 20V. Operates with a quiescent current of 1mA and offers an adjustable output voltage from 1.21V up to 20V. Packaged in a 16-pin TSSOP with dimensions of 5.1mm (L) x 4.5mm (W) x 0.95mm (H). This RoHS compliant component operates across a temperature range of -40°C to 125°C.
PackageTSSOP
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1963AEFE#PBF technical specifications.
General
Package/Case
TSSOP
Dropout Voltage
340mV
Height
0.95mm
Lead Free
Lead Free
Length
5.1mm
Min Current Limit
1.6A
Max Input Voltage
20V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
20V
Min Output Voltage
1.21V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1mA
Output Current
1.5A
Output Type
Adjustable
Output Voltage
20V
Package Quantity
95
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
63dB
Quiescent Current
1mA
Reach SVHC Compliant
No
Reference Voltage
1.21V
RoHS Compliant
Yes
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1963AEFE#PBF Datasheet
Download the complete datasheet for Analog Devices LT1963AEFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

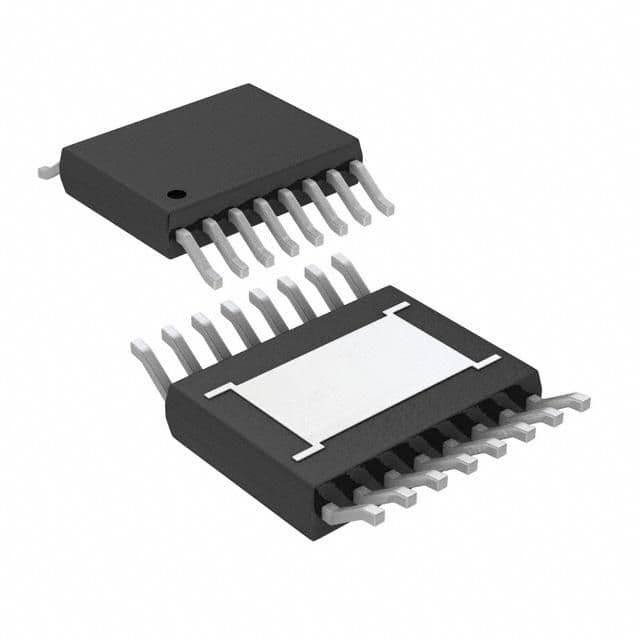

Product Images
