Positive fixed 2.5V linear voltage regulator IC with a 1.5A maximum output current. Features a low 340mV dropout voltage and a wide input voltage range from 2.1V to 20V. Offers a high 63dB power supply rejection ratio and operates with a 1mA quiescent current. Packaged in a 5-lead DDPAK with dimensions of 10.54mm length, 9.4mm width, and 4.57mm height. Suitable for operation across a temperature range of -40°C to 125°C.
PackageQ
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1963AEQ-2.5#PBF technical specifications.
General
Package/Case
Q
Dropout Voltage
340mV
Height
4.57mm
Lead Free
Lead Free
Length
10.54mm
Min Current Limit
1.6A
Max Input Voltage
20V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Nominal Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1mA
Output Current
1.5A
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
63dB
Quiescent Current
1mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
9.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1963AEQ-2.5#PBF Datasheet
Download the complete datasheet for Analog Devices LT1963AEQ-2.5#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

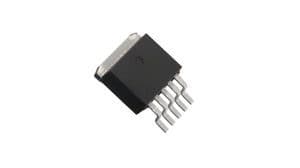

Product Images
