Positive fixed 3.3V linear voltage regulator, offering a maximum output current of 1.5A. Features a low dropout voltage of 340mV and a maximum input voltage of 20V. Operates with a quiescent current of 1mA and a minimum current limit of 1.6A. This RoHS compliant component is housed in a 5-pin DDPAK package with dimensions of 10.54mm length, 9.4mm width, and 4.57mm height, suitable for operation between -40°C and 125°C.
PackageQ
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1963AEQ-3.3#PBF technical specifications.
General
Package/Case
Q
Dropout Voltage
340mV
Height
4.57mm
Lead Free
Lead Free
Length
10.54mm
Min Current Limit
1.6A
Max Input Voltage
20V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1mA
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
63dB
Quiescent Current
1mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
9.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1963AEQ-3.3#PBF Datasheet
Download the complete datasheet for Analog Devices LT1963AEQ-3.3#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

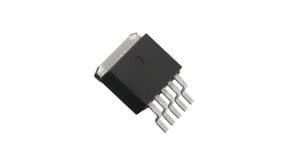

Product Images
