Positive fixed 2.5V linear voltage regulator IC with 1.5A maximum output current. Features a low dropout voltage of 340mV and a maximum input voltage of 20V. Operates with a quiescent current of 1mA and offers a Power Supply Rejection Ratio (PSRR) of 63dB. Packaged in a SOT-223 case, this RoHS compliant component is suitable for a wide operating temperature range of -40°C to 125°C.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1963AEST-2.5#PBF technical specifications.
General
Package/Case
SOT-223
Dropout Voltage
340mV
Height
1.8mm
Lead Free
Exempt
Length
6.71mm
Min Current Limit
1.6A
Max Input Voltage
20V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Nominal Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1mA
Output Current
1.5A
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
63dB
Quiescent Current
1mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.71mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1963AEST-2.5#PBF Datasheet
Download the complete datasheet for Analog Devices LT1963AEST-2.5#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

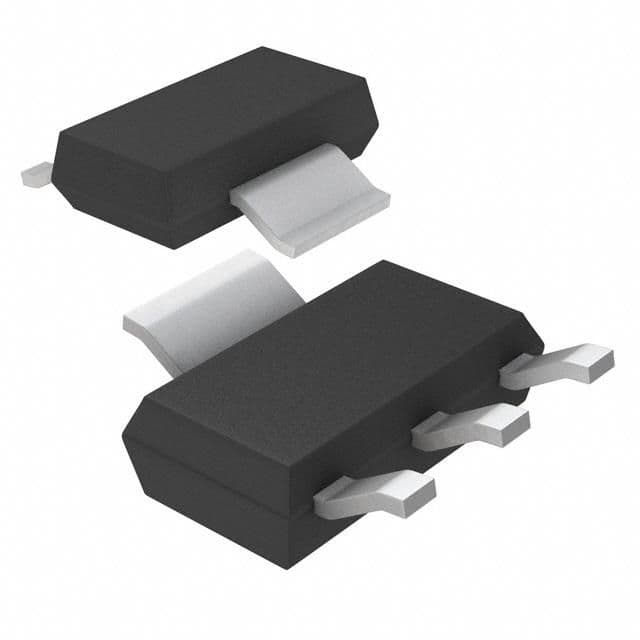

Product Images
