Positive fixed output linear voltage regulator IC with a 1.5V nominal output voltage and 1.5A maximum output current. Features a low dropout voltage of 340mV and a minimum current limit of 1.6A. Operates with a maximum input voltage of 20V and a minimum input voltage of 1.9V. Packaged in a SOT-223 surface mount case, this RoHS compliant component offers a wide operating temperature range from -40°C to 125°C.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1963EST-1.5#PBF technical specifications.
General
Package/Case
SOT-223
Dropout Voltage
340mV
Height
1.7mm
Lead Free
Lead Free
Length
6.71mm
Min Current Limit
1.6A
Max Input Voltage
20V
Min Input Voltage
1.9V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Mount
Surface Mount
Nominal Output Voltage
1.5V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.5V
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
1mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.71mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1963EST-1.5#PBF Datasheet
Download the complete datasheet for Analog Devices LT1963EST-1.5#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

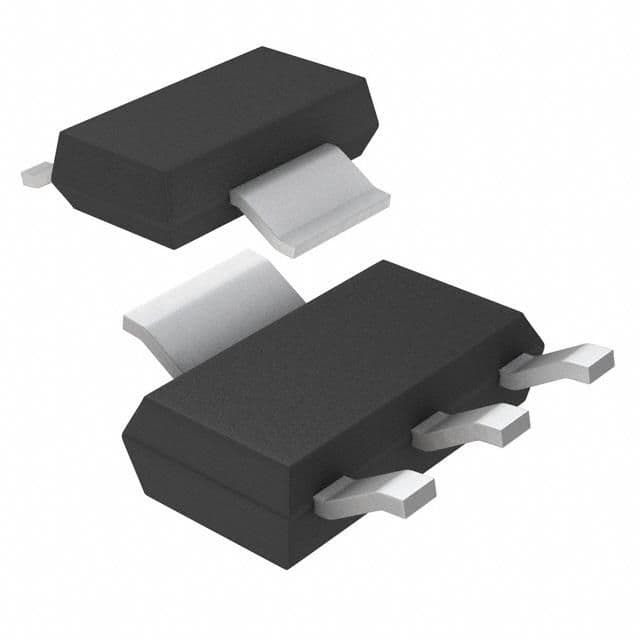

Product Images
