Positive fixed 3.3V output linear voltage regulator with 1.5A maximum output current. Features a low dropout voltage of 340mV and a wide input voltage range from 1.9V to 20V. Operates across a temperature range of -40°C to 125°C and is housed in a compact SOT-223 surface mount package. This RoHS compliant component offers a quiescent current of 1mA.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1963EST-3.3#PBF technical specifications.
General
Package/Case
SOT-223
Dropout Voltage
340mV
Height
1.7mm
Lead Free
Lead Free
Length
6.71mm
Max Input Voltage
20V
Min Input Voltage
1.9V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Polarity
Positive
Quiescent Current
1mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.71mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1963EST-3.3#PBF Datasheet
Download the complete datasheet for Analog Devices LT1963EST-3.3#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

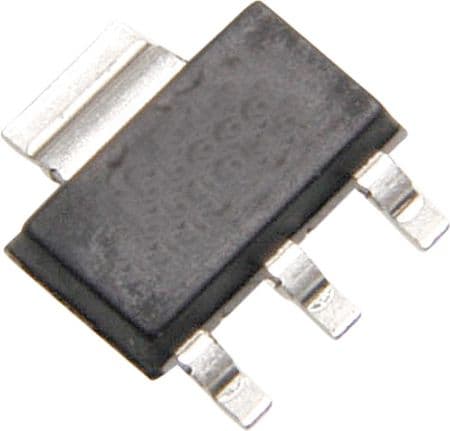

Product Images
