Adjustable positive linear voltage regulator IC, featuring a 500mA maximum output current and a low dropout voltage of 155mV. This component operates with a maximum input voltage of 10V and a minimum input voltage of 900mV, providing an adjustable output voltage range from 200mV to 9.8V. It boasts a high power supply rejection ratio (PSRR) of 70dB and a quiescent current of 120µA. The device is housed in a compact 5mm x 5mm DFN package, suitable for operation across a wide temperature range of -40°C to 125°C.
PackageDFN
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT3021EDH#PBF technical specifications.
General
Package/Case
DFN
Dropout Voltage
155mV
Height
0.7mm
Lead Free
Lead Free
Length
5mm
Min Current Limit
550mA
Max Input Voltage
10V
Min Input Voltage
900mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
9.8V
Min Output Voltage
200mV
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
120uA
Output Current
500mA
Output Type
Adjustable
Output Voltage
9.5V
Package Quantity
73
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
70dB
Quiescent Current
120uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3021EDH#PBF Datasheet
Download the complete datasheet for Analog Devices LT3021EDH#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

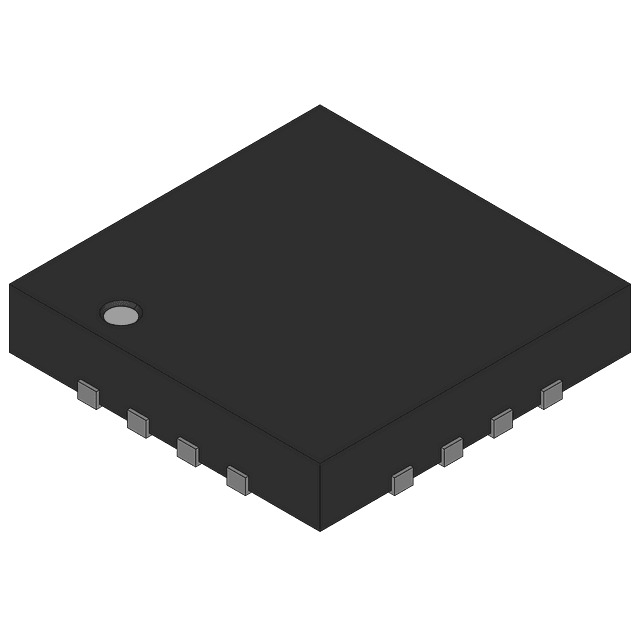

Product Images
