Positive fixed output linear voltage regulator IC, delivering a nominal 5V output with 100mA maximum output current and 2% accuracy. Features a low 300mV dropout voltage, 45V maximum input voltage, and 1.6V minimum input voltage. Operates with 40µA quiescent current and offers a 67dB PSRR. Packaged in a TSOT-23-8 case, this RoHS compliant component supports an extended operating temperature range of -40°C to 150°C.
PackageTSOT
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT3060HTS8-5#TRMPBF technical specifications.
General
Package/Case
TSOT
Dropout Voltage
300mV
Min Current Limit
110mA
Max Input Voltage
45V
Min Input Voltage
1.6V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
40uA
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
67dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3060HTS8-5#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3060HTS8-5#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

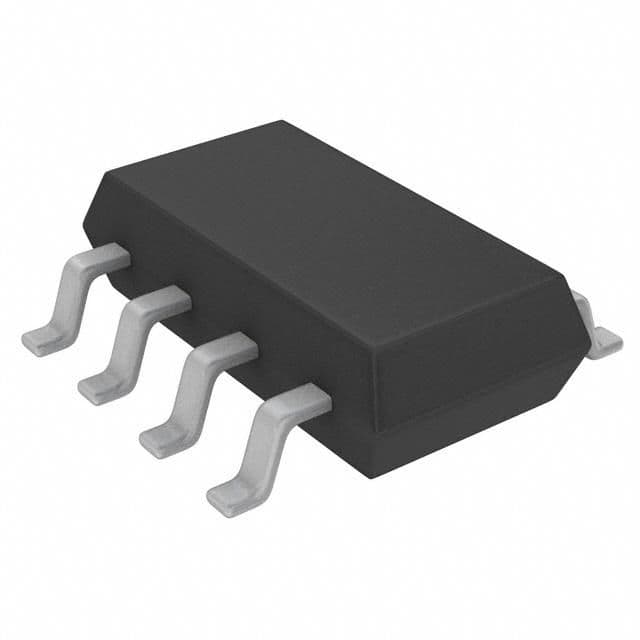

Product Images
