Adjustable positive linear voltage regulator IC with 1.1A output current capability. Features a low dropout voltage of 1.35V and a wide input voltage range from 1.2V to 36V, with a maximum output voltage of 36V. Operates across a temperature range of -40°C to 125°C and is housed in a SOT-223 package. This RoHS compliant component offers a typical operating supply current of 300µA.
PackageSOT-223
Quick Jump:
Technical Specifications
Analog Devices LT3080IST#PBF technical specifications.
General
Package/Case
SOT-223
Dropout Voltage
1.35V
Min Current Limit
1.1A
Max Input Voltage
36V
Min Input Voltage
1.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
36V
Min Output Voltage
0V
Number of Regulators
1
Operating Supply Current
300uA
Output Current
1.1A
Output Type
Adjustable
Output Voltage
36V
Package Quantity
78
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3080IST#PBF Datasheet
Download the complete datasheet for Analog Devices LT3080IST#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

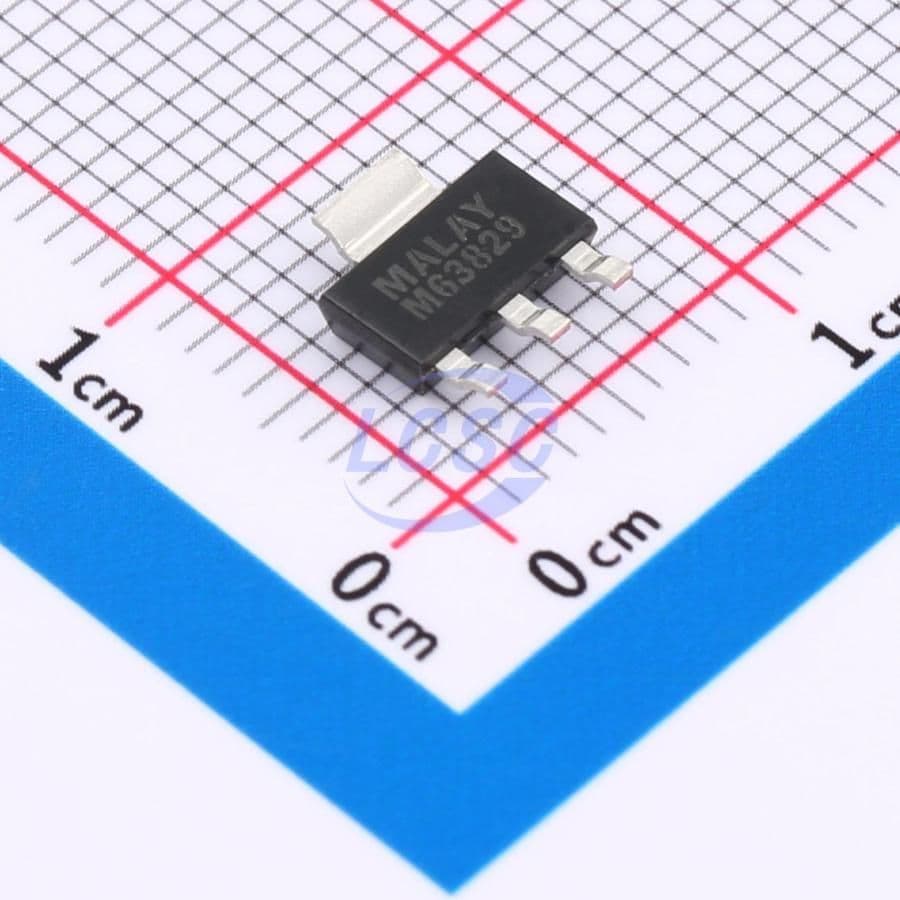

Product Images
